Bosch -200 Fuel pump

Description

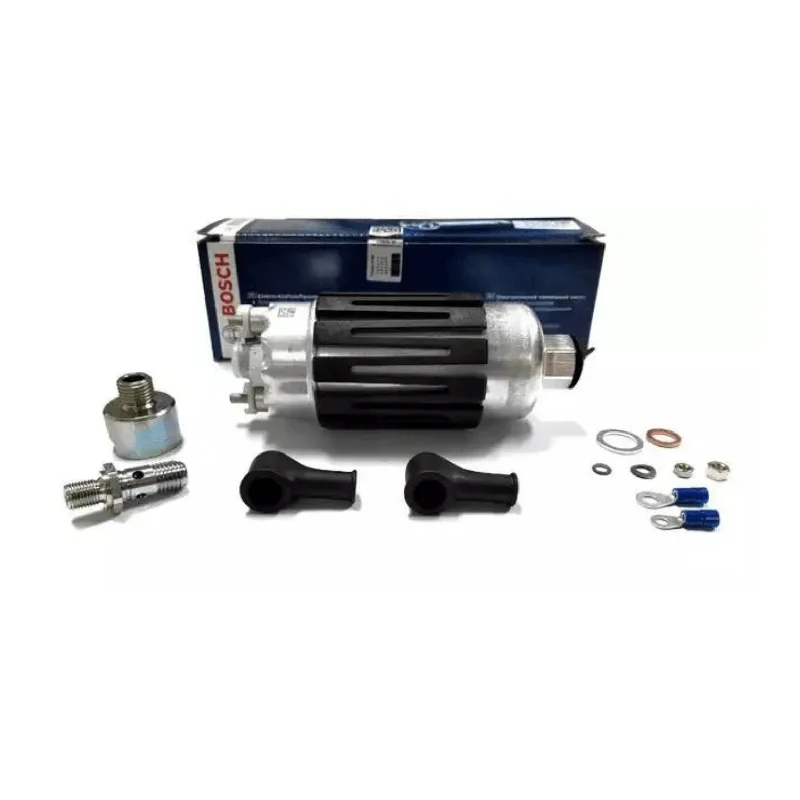

Bosch -200 (0580464200) fuel pump

This is Bosch’s new high performance fuel pump that replaces the classic Bosch -044 fuel pump!

This fuel pump flows about 15% more and weighs about 15% less than the old -044 pump. This fuel pump is also made to handle Ethanol (E85) better unlike the old -044 pump.

Specifications:
275 L / H at 5 bar
Max working pressure 8bar
Inlet: M14x1.5, M18x1.5 with supplied adapter.
Outlet: M10x1 without non-return valve, M12x1.5 with supplied check valve.
Consumption 17A at 5bar @ 13V
Built-in pre-filter of 130 microns (non-replaceable)
Power connection: M5 (-), M4 (+)
Diameter: 52mm / 60mm if you use the included adapter so it fits directly in mounts for 60mm such as. Bosch -044 uses.
Fuel: Petrol, Ethanol and Diesel. The fuel pump will have a shorter life on Ethanol than on petrol and Diesel.
Voltage: 12V

Can be mounted both inside and outside the tank.

Bosch -200 vs Bosch -044

Length (without connections)
044 – 150 (160mm with electrical connections)
200 – 150mm (155mm with electrical connections)

Diameter:
044 – 60mm
200 – 52mm (60mm with supplied adapter)

Inlet:
044 – M18x1.5
200 – M14x1.5 (M18x1.5 with supplied adapter)

Outlet:
044 – M12x1.5
200 – M10x1

Electrical connection:
044 – M5 (-), M4 (+)
200 – M5 (-), M4 (+)
