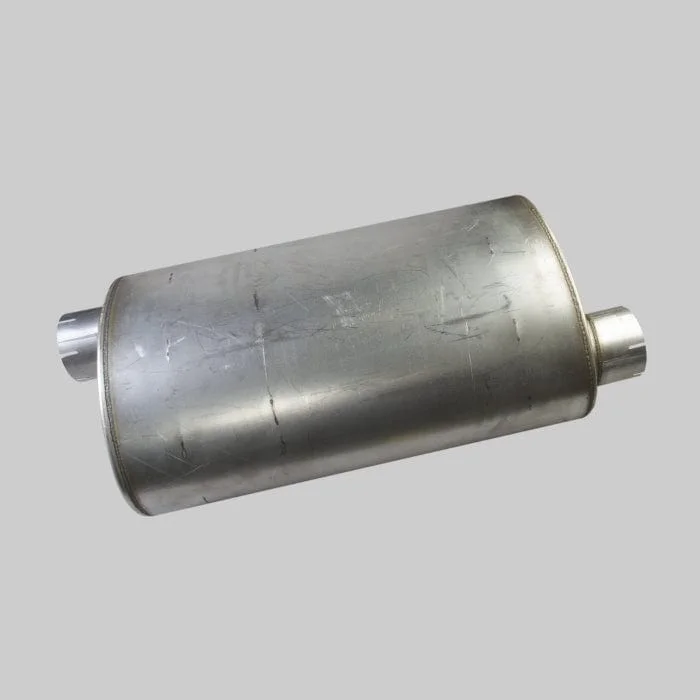

Muffler, Oval Style 2 – Donaldson M170101

Original price was: £1,577.56.Current price is: £298.98.

In the unlikely event of a delivery delay exceeding 10 working days. would you accept an alternative brand equivalent? (If no. we will contact you in the event of an unexpected delay):

SKU: 8713282650460 Category:

Description

Donaldson M170101

Muffler, Oval Style 2

Inlet Diameter 6.04 inch (153.39 mm)
Outlet Diameter 6.04 inch (153.39 mm)
Body Diameter Minimum 14.12 inch (358.65 mm)
Body Diameter Maximum 21.12 inch (536.45 mm)
Body Length 35.00 inch (889 mm)
Overall Length 47.00 inch (1193.8 mm)
Rated Flow LR 2373 cfm (67.2 m³/min)
Rated Flow MR 3355 cfm (95 m³/min)
Rated Flow HR 4111 cfm (116.4 m³/min)
Back Pressure Low-Range 0.98 inch Hg (25 mm Hg)
Back Pressure Mid-Range 2.01 inch Hg (51 mm Hg)
Back Pressure High-Range 2.99 inch Hg (76 mm Hg)
Attenuation LR 12 dBA
Attenuation HR 18 dBA
Inlet Clock Position 3:00
Outlet Clock Position 9:00
Style Style 2
